What are JavaScript variables made of

#javascript#v8

When we start learning to program, we often are taught using some metaphor to help us understand one of the most fundamental concepts in programming- variable. You may or may not have been told to think of variables as storage boxes or houses. Whatever that metaphor was, it became the mental shortcuts we use when we read/write programs, but we rarely take the time to introspect these intuitions we developed over time.

In this post, I will:

  1. stay at the language specification level, discuss different types of mental models for variables
  2. come down the ladder of abstraction and peek under the hood at the JavaScript language implementation to see what JavaScript variables are actually made of
  3. bust one of the most famous urban legends in JavaScript - pass-by-reference for object

TL;DR:#

This blog post will probably get too long and, maybe in some people's view, pedantic. So I figured I would put up a quick TL;DR:

  1. Instead of thinking of a JavaScript variable as a box, you should think of it as a label, a wire, something that points to/references the value.
  2. JavaScript variables are all implemented as pointers, and values are always on the heap, including primitive values and objects. (except for small integers due to pointer tagging)
  3. Objects are not passed by reference. You might argue it all comes down to nomenclature, but in JavaScript passing objects or primitive values to a function are not handled differently in memory.

Mental models for Variables#

There are two schools of thought that I have seen when it comes to the mental models for variables:

  1. storage box, house, or some kind of container
  2. label, wire, or some kind of reference

A box#

For most people, "box" is probably the first metaphor they were taught to use when learning to program. I guess this is because to most people their first formally-taught programming language is C. At least for my generation, we didn't teach Python at CS101.

This "box" mental model works well for languages like C and C++, where a variable can literally have its value at its representation in memory. In other words, a C/C++ variable is loaded at some memory address, and starting from that address, the bits in the memory block make up the value themselves.

Here is an example in C++:

struct Position
{
    int x;
    int y;
};

struct Line
{
    Position pos1;
    Position pos2;
};

Line foo;

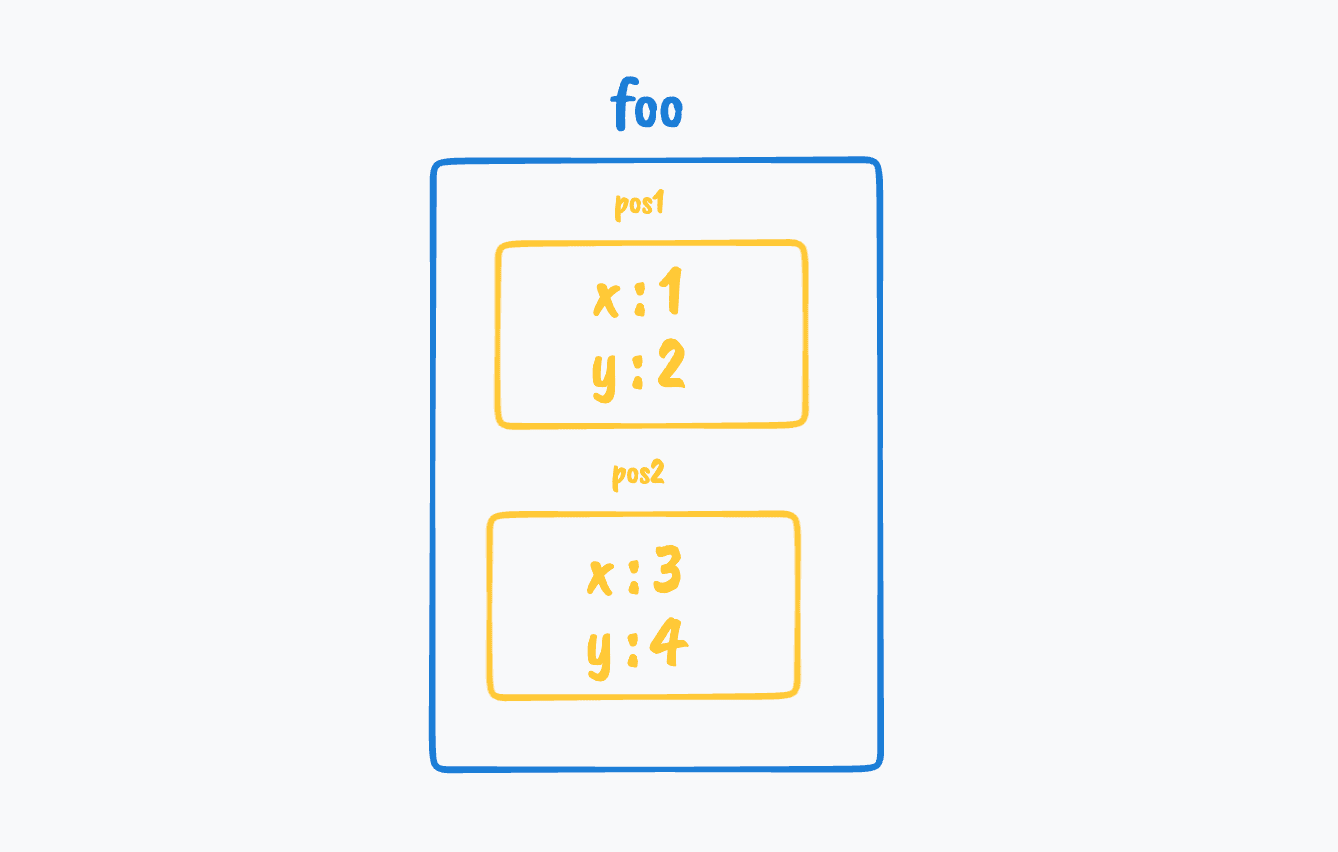

The variable foo will be the size of 4 integers, so that is 16 bytes in memory.

The exact size can vary depending on the CPU architecture and maybe not precisely 4 int as there might be some additional padding for alignment purposes.

alt

When you assign it to a different variable or pass it as an argument to a function, you are literally carrying a blob of memory with the size of 16 bytes around and copying the full contents into the new variable or the parameter.

Line foo{{1, 2}, {3, 4}};
Line bar = foo;

This is the default behavior in C++. You can avoid them by having the copy constructor deleted or being private or passing by reference instead of passing by value. Since this is not a post about C++, I will not go into details.

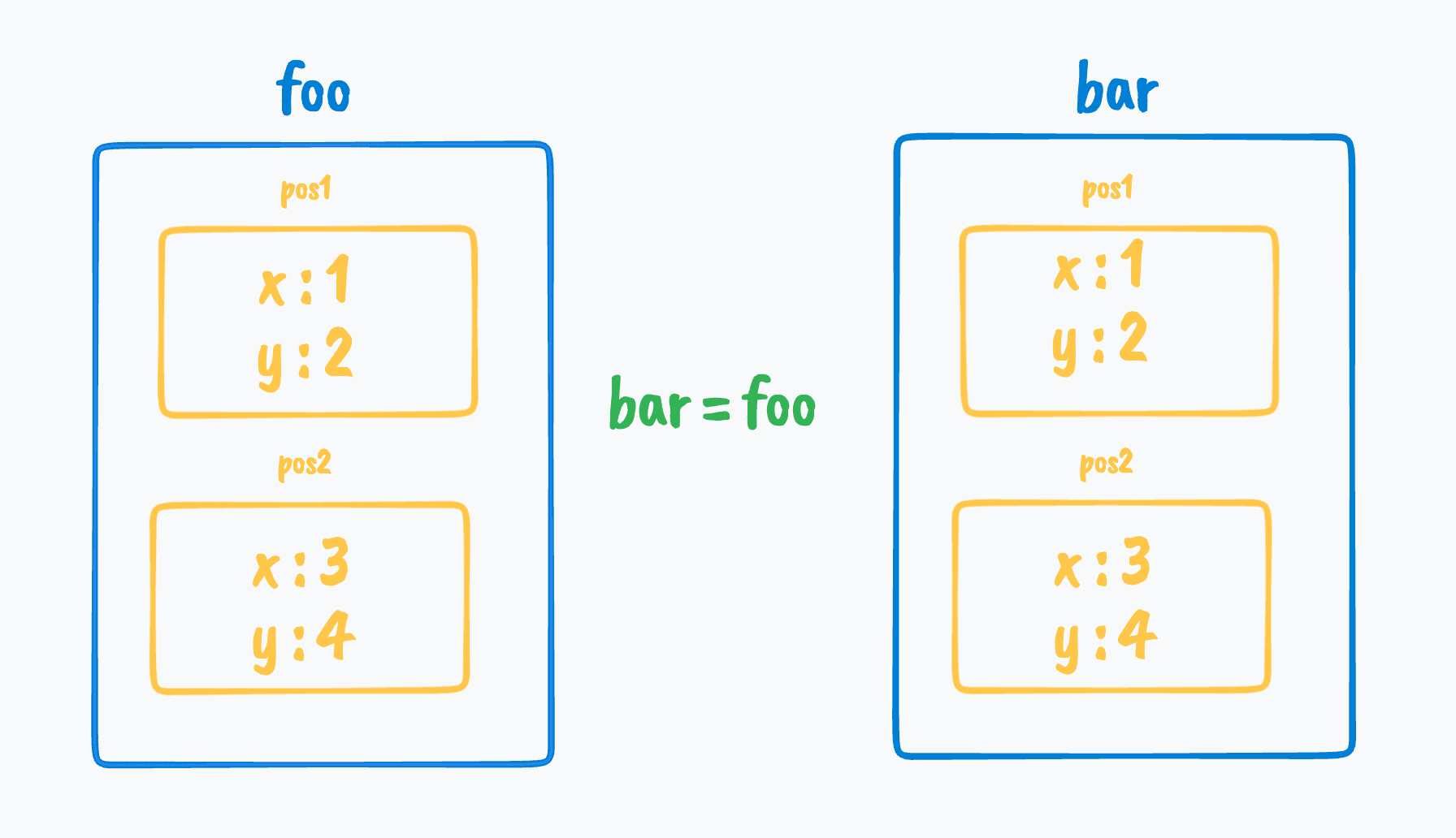

The assignment operator bar = foo replaces the contents of the object bar with a copy of the full contents of foo.

alt

Now that we have two chunks of memory of the size 16 bytes and they are independent to each other, e.g. foo.pos1 and bar.pos1 are two separate objects.

Therefore, variables in C/C++ are like boxes, unless you declare them as a reference/pointer.

A wire#

The “box” mental model fails when the variables and the values are stored in different places in memory.

const foo = {pos1: {x: 1, y: 2}, pos2: {x: 3, y: 4}};

Unlike the C++ example, foo in the JavaScript snippet above does not contain the object value inside. There is an extra layer of indirection here.

alt
When we assign the value of foo to a new variable bar as in const bar = foo, they will start to share the same object, resulting in foo.pos1 and bar.pos1 being the very same object.
alt

So instead of thinking variables as boxes, in JavaScript, think of variables as wires, that connect you to values.

what about primitive values?#

The above example is about objects in JavaScript. At this point you might be suspicious about the correctness or effectiveness of a “wire” mental modal for values of primitive types. For example, if we initialize foo to be of the type string, number or boolean, will the variable actually hold the value inside, like what we have seen in the C++ example?

const foo = 'baz'
const bar = foo

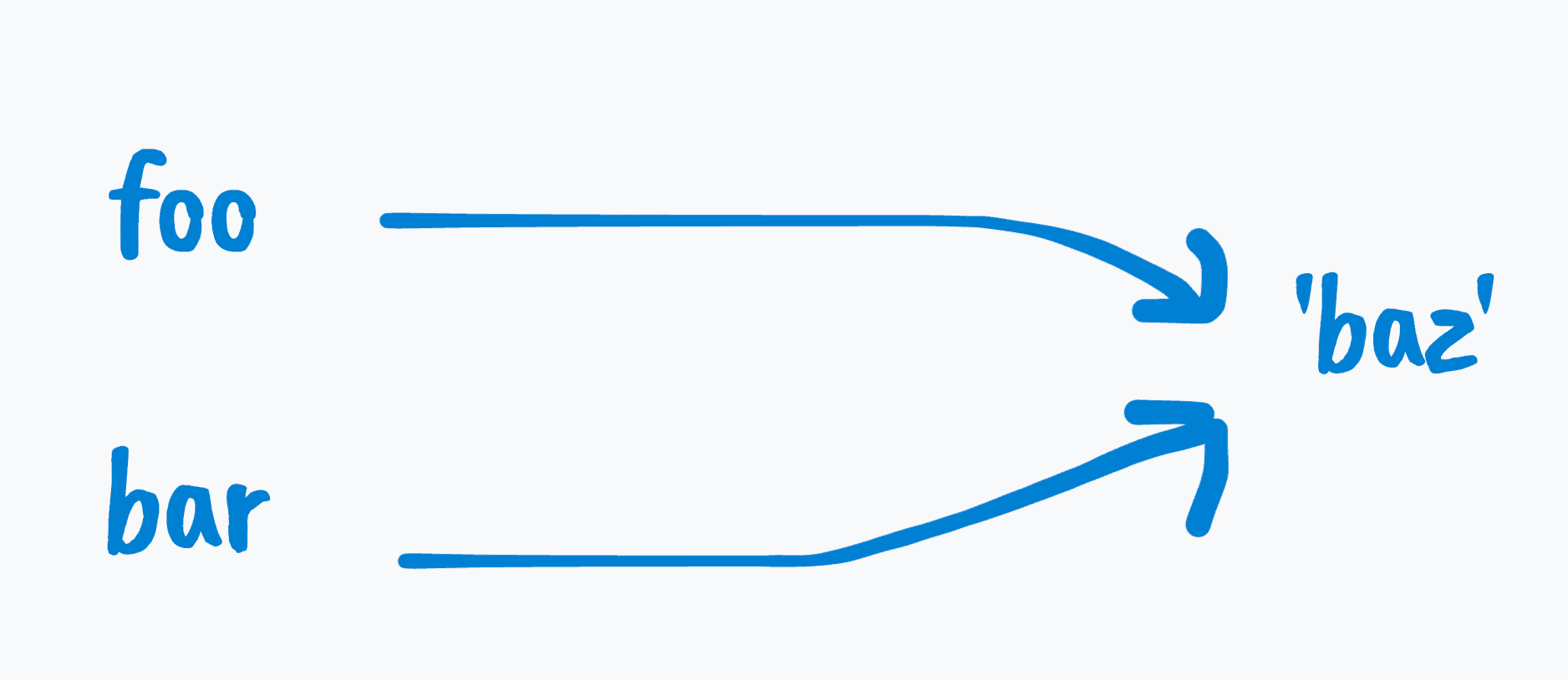

Given the JavaScript code snippet above, will we end up with two separate memory chunks that duplicately make up the string baz? Or there is only one string baz at runtime which is pointed by both variable foo and bar?

The answer is the latter. It is not much different than objects, except that objects are mutable and primitive types are immutable.

alt

Using object literals always gives you new, unique objects, while primitive values (except for numbers, they are complicated) are reused. That means with const a = 'foo'; const b = 'foo', we only have one string foo stored in the memory at runtime due to string interning. This might seem strange to you at first, and if you need proof, please take a look at my post on the topic of the memory model in V8.

What does the spec say#

Before I dive into the language implementation to really show you what JavaScript variables are made of from a low-level V8 perspective, I want to make a point that, even without peeking into what's under the hood, we can infer which mental modal should we use just by understanding the language specification. After all, all the language semantics defined by the specification have to be preserved by the language implementations.

I will be the first to admit that the spec is hard to read. It is not written from the perspective of a language tutorial. Instead, it is written from the point of view of how to write a javascript interpreter. You can skip this section if you are not interested in the spec.

The indirection or separation of JavaScript variables and their corresponding values is expressed in the ECMAScript specification via this abstract Reference Record Specification Type. It is not revealed in JavaScript - you can never obtain them or interact with them directly.

I will refer Reference Record Specification Type as Reference in the following.

A Reference is a specification device used to represent a location at which you can read a value or write a value into. But they themselves do not store values, as you cannot find [[value]] field in its definition. It is used throughout the spec, but you can rarely sense its existence when writing JavaScript because, typically, you interact with values obtained through them.

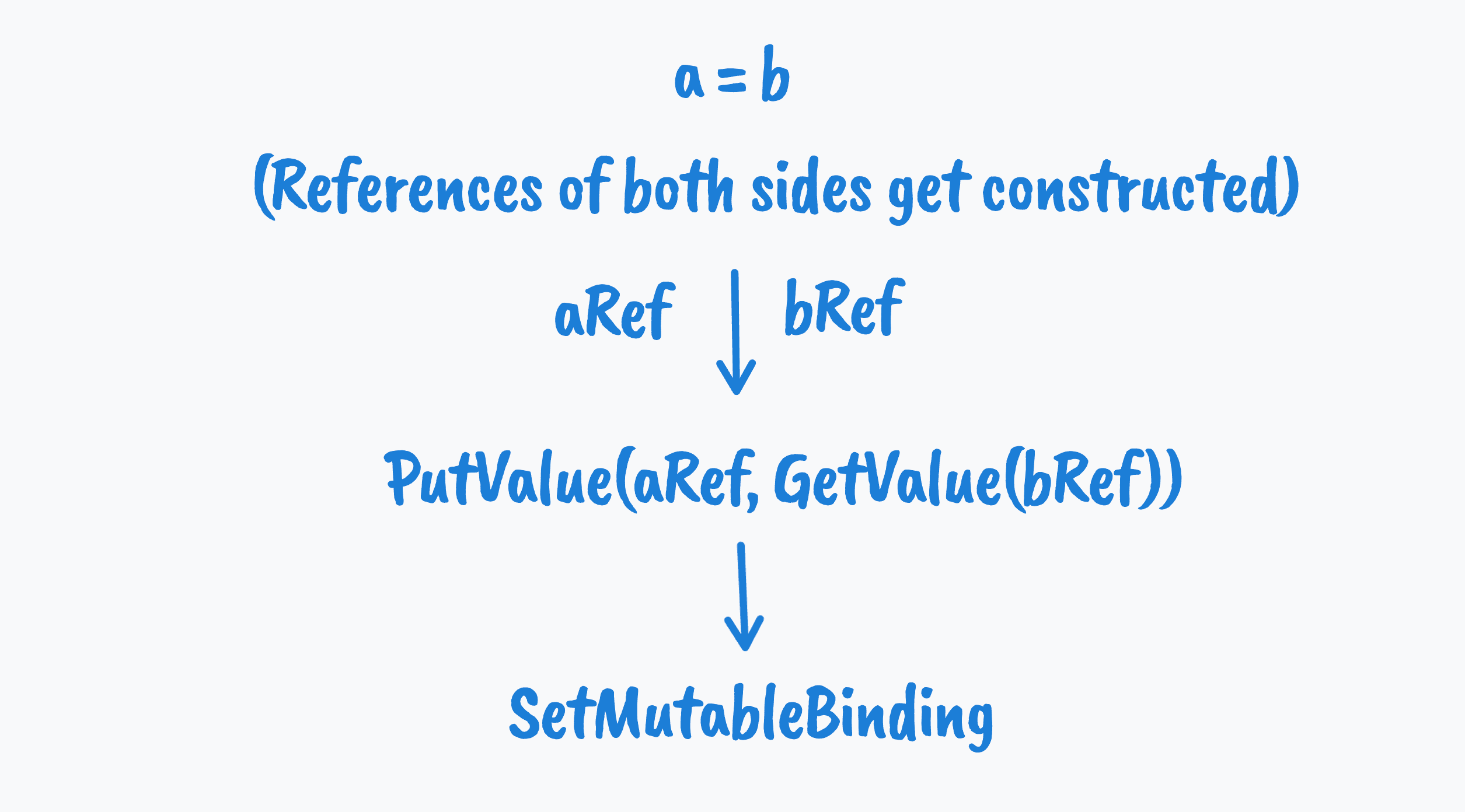

For example: when you write an assignment like a = b, it gets evaluated, and two References for variables a and b get constructed (to be precise, a and b are identifiers). The Reference of the right-hand side (RHS) of the equation gets passed to this abstract function called GetValue, which fetches the value bound to/pointed by the Reference. That value and the Reference of the left-hand side (LHS) are then passed to the abstract PutValue function, setting a new binding via SetMutableBinding. Note that the LHS remains a Reference during the assignment since the engine needs to know where to store the value, while the RHS is always evaluated as a value via GetValue. You can't pass the Reference of RHS to PutValue. That's precisely why you cannot have a variable pointing to another variable in JavaScript- a wire only connects you to a value.

alt

One of the only two operators which can operate directly at a Reference is delete, (the other is typeof). When you use delete on a property in an object, you are not deleting the value pointed by the property. Instead, you are merely deleting the Reference, i.e. the location at which the value is stored.

What are JavaScript variables made of exactly#

The topics discussed from this point forward are all considered “implementation details”. This is where the language specification ends, and the implementation starts.

I am going to explain what JavaScript variables really are from the perspective of the JavaScript engine - V8. There are different JavaScript engines in the wild. And even just for V8 along, it is very complex, and it has multiple ways to run code, and its various parts and pipelines have been rewritten many times over the years. What I describe today might become outdated tomorrow. Don't rely on the implementation details.

Let’s step back for a second. At its simplest, think of a variable as an identifier, an alias to the chunk of memory at which its immediate value is stored. At compile time, your variables are all turned into the memory addresses. Wherever a variable is used in the code, its (immediate) value will be accessed via that memory address.

As we have discussed, the values we create in our JavaScript program are not directly stored in JavaScript variables. At a low level, that means the bits from the memory block of which a JavaScript variable is an alias does not make up its value directly. Then what exactly is stored in a JavaScript variable? The answer, it stores a memory address of some other memory block. Starting at that address, there is a separate chunk of memory, at which a "real JavaScript" value, the value we see, manipulate and pass around in our JavaScript program, is stored.

If you are familiar with the concept of a pointer, you already know the answer: the variables in JavaScript are exactly pointers. (again, except for small integers)

Let’s refine our mental model a little bit: instead of wires, we use tables as the new metaphor and let's create a variable a that points to an empty object.

const a = {}

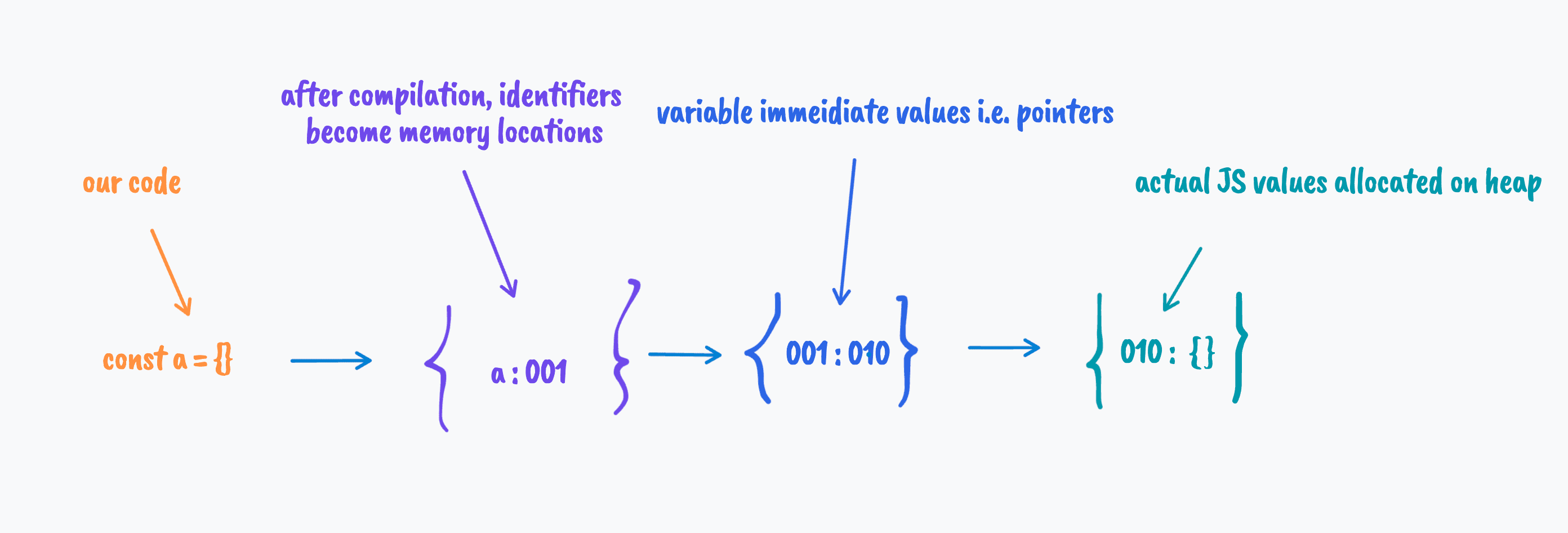

What happens in memory can be illustrated as:

alt

Usually, memory addresses are represented in hexadecimal, but I am not going to bother here for simplicity.

Now we assign the empty object to variable b in const b = a:

alt

variables a and b are loaded at different memory locations, but they store the same immediate value - the (starting) memory address at which the empty object {} is stored.

Again, it shows why it is technically incorrect to say that “variable a has the empty object as its value ” - variable a only has the memory address of that object.

let vs. const#

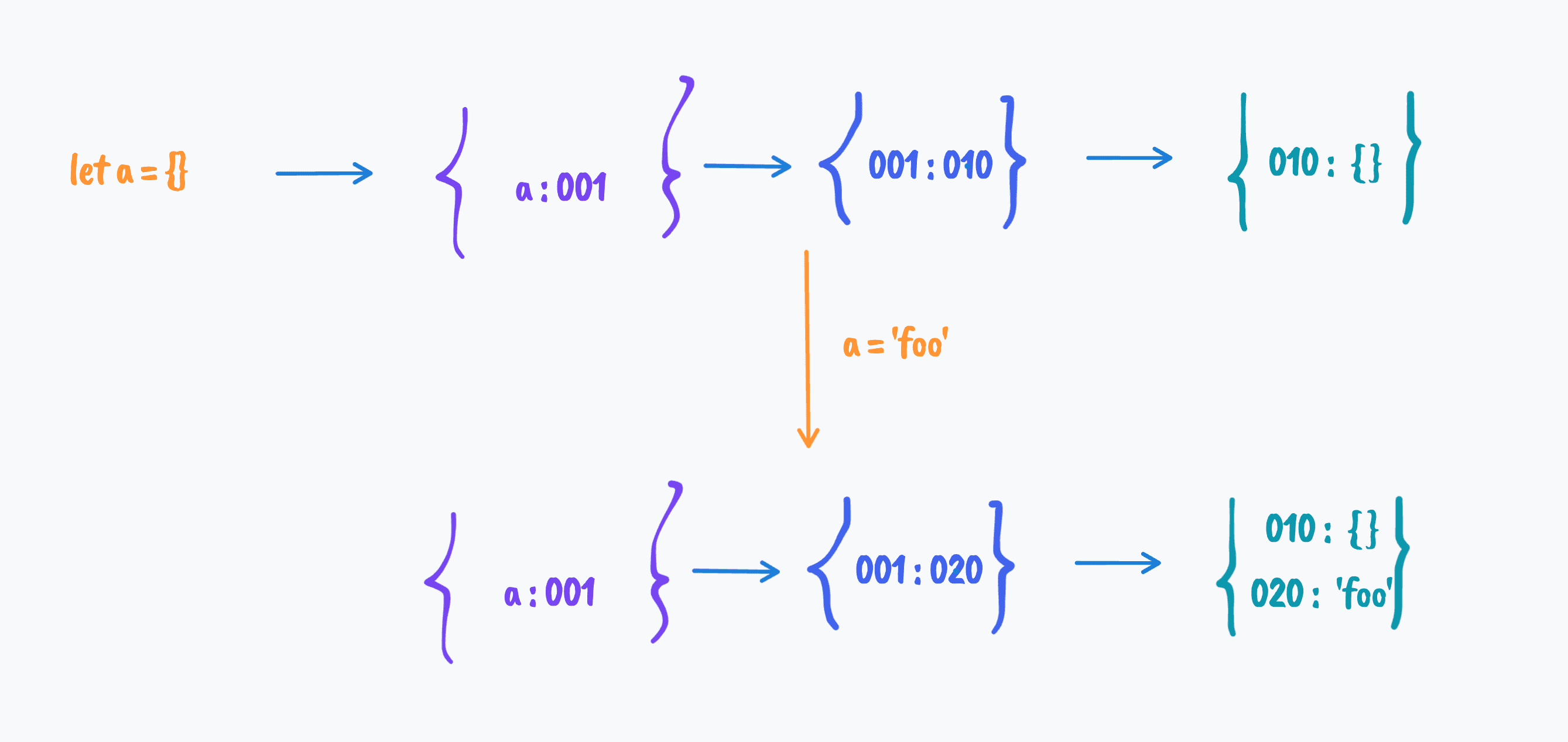

The difference between declaring variables using let keyword and const keyword is that you can change the memory address stored in a variable declared with let but not ones declared with const - note that a variable itself is not moved through the memory:

alt

And the empty object {} would get garbage collected later if it is no longer reachable from the your JavaScript program.

Everything is on the heap#

We haven't talked much about primitive values. For V8 currently, values of primitive types, except for integers ranging from -2³¹ to 2³¹-1 on a 64-bit architecture (more on this later), are just like objects - they are stored separately, and the JavaScript variables can only point to them.

This is clearly stated in one of the V8 blog posts:

“JavaScript values in V8 are represented as objects and allocated on the V8 heap, no matter if they are objects, arrays, numbers or strings. This allows us to represent any value as a pointer to an object.”

The term Heap is a general, well-understood, computing term. In C++ they are referred to in the Standard as the "dynamic storage". Think of it as just a part of the memory. And in order to access data allocated on the heap, the pointers, i.e. the immediate values of your JavaScript variables are (most probably) located on somewhere called the stack or registers, pointing to the heap objects.

This is still an oversimplification. I wrote another blog post about the memory layout in V8.

The hidden layer in JavaScript#

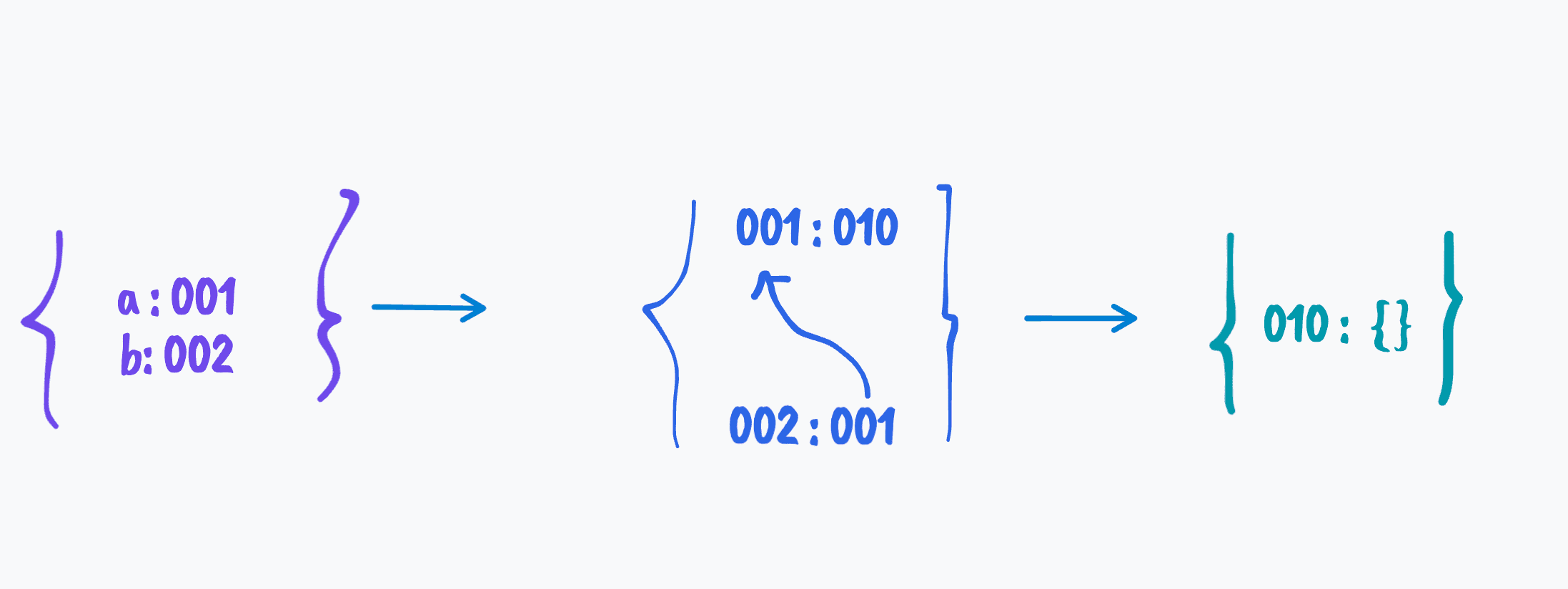

The second table (blue) in the previous diagrams is always hidden in the JavaScript world, just like our Reference Record Specification Type. Within JavaScript, you cannot see or interact with a pointer (i.e. JavaScript variables) except for retrieving the actual values pointed by them, nor can you get the memory address of a pointer itself either. Mouthful right? Interacting with your memory in a low-level way can get really tricky, so the JavaScript engine manages that for you.

For example, unlike languages like Go, C or C++, in JavaScript you cannot use a reference operator & to retrieve the memory address of a variable e.g. int* b = &a. For that reason, this diagram below as it cannot happen in JavaScript:

alt

In languages like C, C++, and GO where the second table is visible, you can dereference a pointer to change the value pointed to by it.

Now you know what JavaScript variables/object properties are made of - they are (directly) made of pointers, storing memory addresses and pointing to values you create and manipulate in your JavaScript program. But don't go overboard and use pointers to refer to every JavaScript variable you declared. Unlike C/C++, for JavaScript, a pointer is not a term that gets used in the language semantics. Calling variables pointers would not add any useful distinction.

Boxing#

You might be thinking: why do we have to add extra pointer indirections between values and variables/object properties? This (mostly) has to do with the nature of the language being dynamically typed. In a dynamically typed programming language, the type checks are performed at runtime. However JavaScript variables can hold any type of values at runtime. Therefore the types cannot be associated with a variable but with the underlying value pointed/referenced by a variable. To achieve that, we need a uniform memory representation for JavaScript variables - pointers. And the real values are allocated somewhere else on the heap (dynamic memory), containing metadata such as the type and the size of the value, pointed by those pointers (i.e. JavaScript variables).

Wrapping primitives types inside another data structure that records extra metadata about the value is known as boxing.

Small integers#

And I have been mentioning that small integers are an exception to this boxing rule. In V8, small integers (the term in V8 is smi) are heavily optimized so they can be encoded inside of a pointe. Unlike other types, a smi can be stored directly in the pointer without allocating additional storage for it.

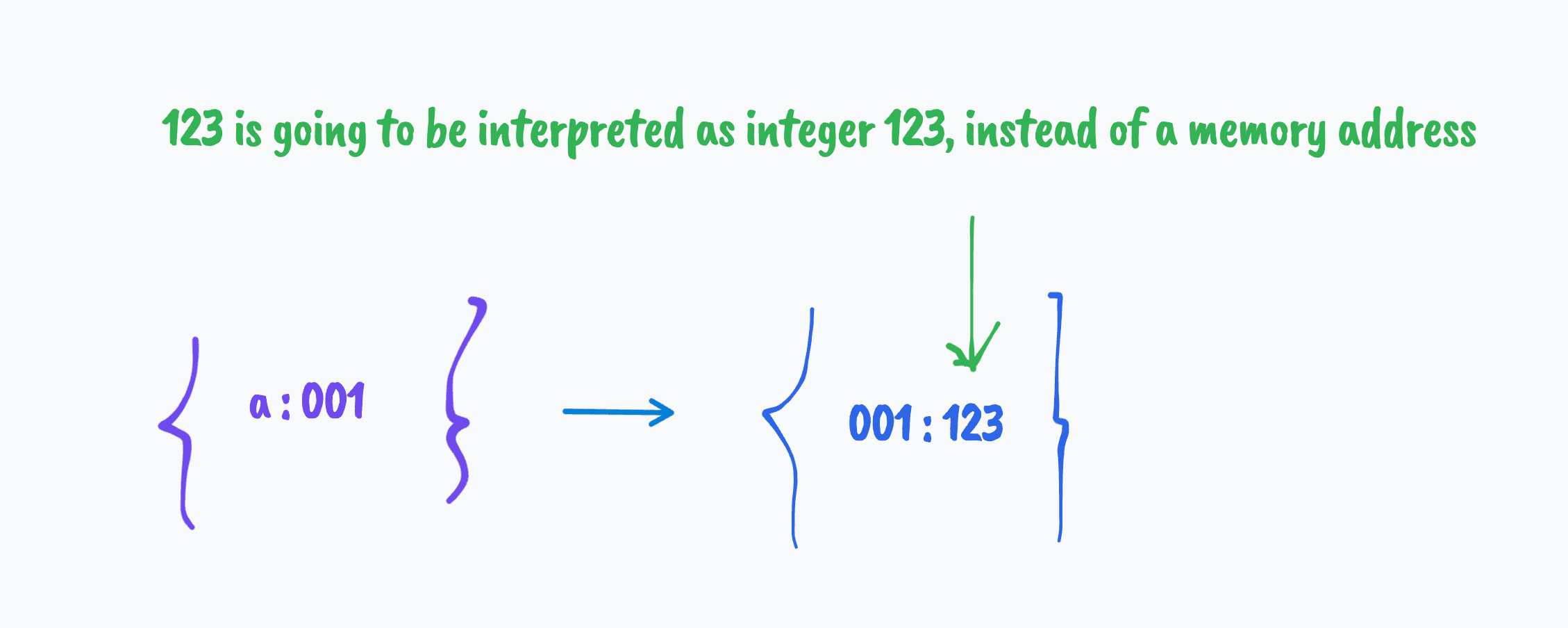

This means, it is technically correct to say that a has the value 123 as in const a = 123:

alt

Read this article from V8 if you are interested in how they distinguish between a smi vs. a pointer for an immediate value. This technique is called pointer tagging, and it is not unique to V8 or JavaScript. A bunch of other languages like OCaml and Ruby does this too.

So now let me revise the statements I made previously for completeness:

  1. The value of a JavaScript variable (or an object property) is either an immediate integer or a pointer to some other memory at which the real value is stored.
  2. Therefore, we can say a JavaScript variable or an object property has the value only when the value is a smi. Otherwise, they only point to values.

Why JavaScript can not do pass-by-reference#

This myth is not unique to the JavaScript community. I have seen this come up in the Java community as well.

The answer has already been given: JavaScript can not do pass-by-reference because we can't have a variable point to another variable - a wire only connects us to a value.

A famous litmus test for whether a language supports pass-by-reference is to see if you can write out a function that takes two arguments and swaps them such that variables passed into the function are changed outside the function. While it is possible to do in C++:

int main()
{
    int a = 1;
    int b = 2;

    cout << a << " " << b << endl; // a is 1, b is 2
    swap(a, b);
    cout << a << " " << b << endl; // a is 2, b is 1


    return 0;
}


void swap(int &r1, int &r2) {
    int temp = r1;
    r1 = r2;
    r2 = temp;
}

This is not possible in JavaScript. But I don't think we need to throw functions into the mix to explain why JavaScript does not support pass-by-reference.

At its core, for JavaScript to support pass-by-reference, we need to have a way to change the value pointed/referenced by a given variable without doing a re-assignment on the variable itself.

For example, we declare variable a in let a = 1, is there a way to change the number that a has from 1 to 2 without directly reassigning 2 to a as in a = 2?

Postfix/Prefix Increment Operator as in a++ or ++a still count as a re-assignment on the variable a itself since they both use the abstract PutValue method internally.

let a = 1
//... doing anything another than `a = 2`, `a += 1`, `a++` or `++a`
console.log(a) // if a can be changed to `2` then JavaScript can do pass-by-reference

You cannot. It is impossible in JavaScript:

  1. if we stay at the JavaScript language specification level, as I pointed out early, you cannot bind a variable identifier with a Reference Record Specification type. This prevents you from having a variable that has the location (i.e. a Reference) of another variable as its value.
  2. going deeper into the implementation level, there is no way to get a variable’s memory address due to the hidden layer we discussed above.

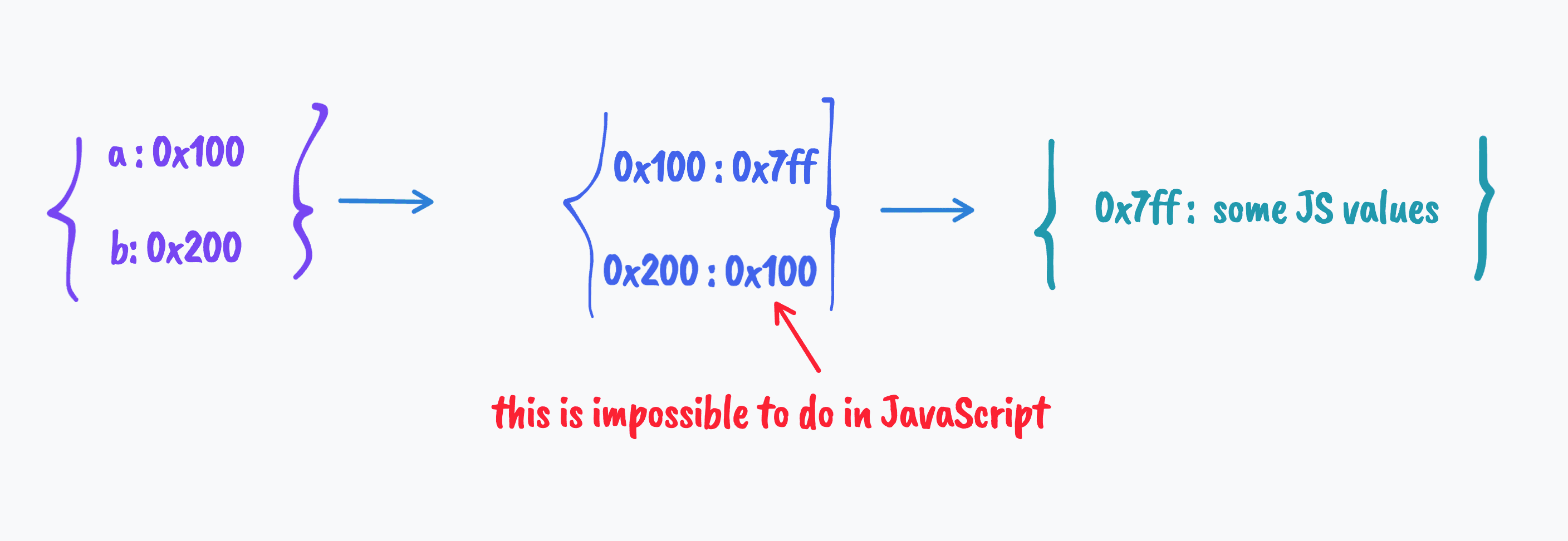

    • For example, if variable a is loaded at 0x100, we cannot get that address 0x100 and store it inside of another variable b and later dereference b to access and change data contained the memory block of variable a.
      alt

You might argue things would change if a points to an object. For example, if we declare variable a as const a = { val: 1 }, there are indeed ways to modify the object to { val: 2 } without directly reassigning a a new object value.

In fact a lot of people get the wrong impression when passing an object to a function: within that function, it is true we can mutate the object, and that mutation would indeed reflect on the object value passed from the outside. Here is an example:

const a = { val: 1 }
function fn(input) {
	input.val = 2
}

fn(a)

console.log(a) // `{ val: 1 }' -> { val: 2 }'

But this has nothing to do with pass-by-reference - the variable a still points to the same object - the identity of the object didn't change.

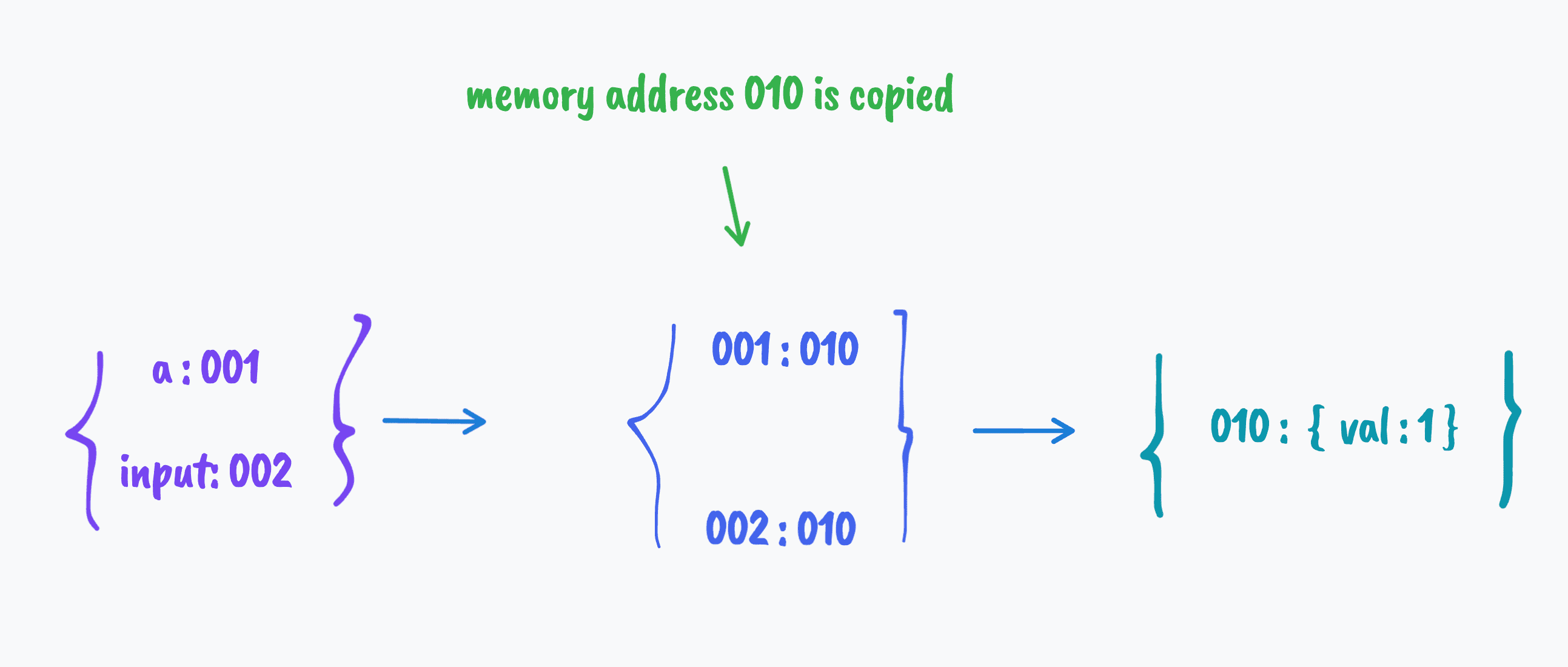

In fact, this is exactly pass-by-value - the value that gets passed and copied is a pointer that has the memory address of the object { val: 1 }.

alt

JavaScript inventor Brendan Eich himself also confirmed that the reference/pointer of the object is copied in an old email. Maybe another more fitting or intuitive name for how object arguments are passed and evaluated should be pass-by-share.

Notes on terminology#

For variables that point to objects, some people also like to refer to them as references to objects. In this context, a reference and a pointer is the same thing. A pointer and a reference both function to provide access to data stored somewhere else - an indirection to another value. In languages like Java and JavaScript that have only one or the other, the choice of terminology is largely an arbitrary decision. The terminology only matters for languages like C++, which is unusual in having both pointers and references.

Closing thoughts#

When it comes to learning a programming language, there are always two levels of abstraction involved:

  1. the language itself, i.e., the static and runtime semantics defined by the language specification.

  2. the underlying implementation details, i.e., a specific virtual machine that implements the language.

When discussing programming languages, always remember what level of abstraction you're operating at.

Lastly, this post is largely inspired by Dan Abramov's course JustJavaScript. He elegantly explained how JavaScript works in a poetic and allegorical way without going to any implementation details. Whether you are new to the language or you are already an experienced dev, I encourage you to check out his course.
